RAZOR TAPE SHORT BARB

Australian Security Fencing provides it Short Barb Razor Wire product all commercial, industrial applications including;

• Data Centres
• Defence Sites
• Correctional Facilities
• Transport
• Utility Providers
• Factories
• Warehouses
• Carpark Entrances
• Local and State Government Projects
• Critical Infrastructure

Razor Tape Short Barb is made of continuous galvanized strip with four barbs cold clenched around a high tensile spring steel core wire. The barbs prevent any hand hold and grip onto any form of clothing. The core wire helps make the Razor Tape difficult to cut & ensures long life.

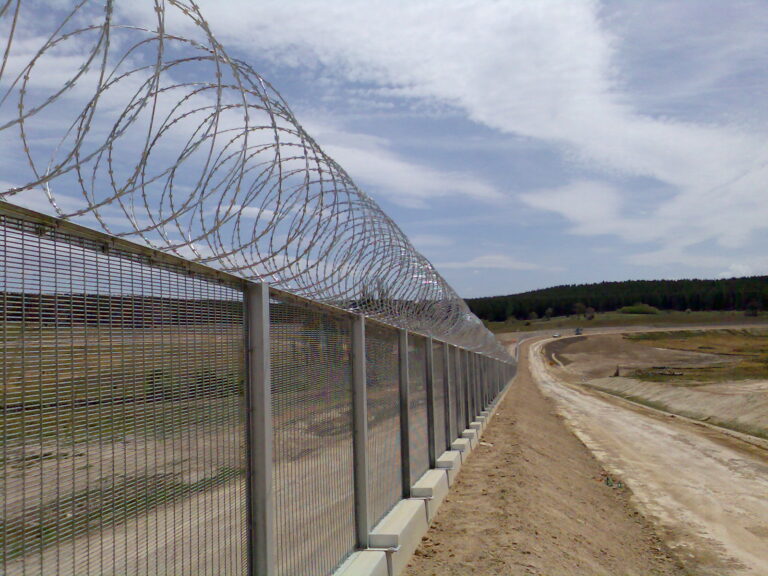

Razor Tape Single Is machine formed as a continuous helical coil. The individual loops are strung out like a spring & tied at regular intervals to a fence or wall. Diameters available 470 & 760mm.

Razor Tape Concertina Is formed by clipping loops of single coil to one another at regular points. When extended this forms a cylindrical pattern & limits the extension of the coil giving integral strength & eliminating the need for support cables.

Diameters available 550, 760 & 980mm.

Razor Tape Flat Is supplied as individual clipped loops suitable for attaching directly to fence tops parallel to the fence line. Suitable for situations where no overhang into adjoining properties or where a neat f lat appearance is required. Diameters available 470, 550 & 760mm.

APPLICATIONS

SHORT BARB RAZOR TAPE  SPECIFICATIONS

Galvanized Blade Strip

• Galvabond G2 0.55mm Thick
• Coating Class Z275
• Hardness HR30T 50-60 (typical)
• Surface Finish: Spangled
• Surface Treatment: Chromated
• Australian Standard AS 1397

Tape Configuration

• Clusters of barbs at 25mm(+/-1mm) centres
• Each barb 10mm (approx) long with needle sharp points.
• Width of barbed tape: 14mm. Hard-Drawn Galvanized Spring Steel Wire Range 2
• Standard: AS 1472/1979 • Diameter: 2.5mm (+/-0.02)
• Tensile Strength: 1730-1950 MPa
• Galvanizing: Galvanized 125g/m2 (min)
• Class WO5 AS4534-1998.

Concertina Clips

• Galvabond G2 1.6mm Thick x 9.7mm wide
• Coating Class Z275
• Hardness HR30T 50-60 (typical)
• Surface Finish: Spangled
• Surface Treatment: Chromated
• Australian Standard AS 1397

Don’t hesitate to contact Australian Security Fencing sales staff to discuss your specific application requirements.
